Installing Weights on Flanged Axle

LX009816-UN-04JAN95

LX009817-UN-02JAN95

When installing and removing quick-catch weights, always position wheels so that retainer jaws are at the top. This prevents weights from falling when cap screw is removed.

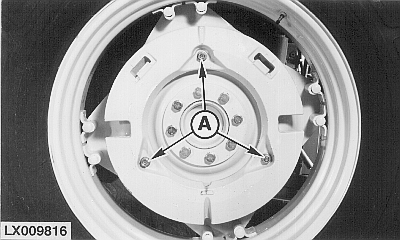

Attach first weight to wheel disk using three cap screws (A).

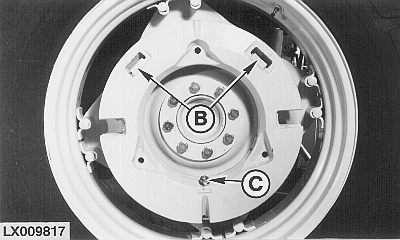

When installing further weights, position wheel so that retainer jaws (B) are at the top. Hang weight in retainer jaws and secure with a cap screw (C) at the bottom.
